Map in a minute: Explore historic low water levels in Lake Mead using ArcGIS Living Atlas

Lake Mead in Nevada is the largest reservoir in the United States with an estimated capacity of 28,945 acre-feet. Formed by the Hoover Dam, the lake is a vital component of the Southwest water ecosystem, serving water to millions of people in Arizona, California, and Nevada, as well as portions of Mexico.

Withering drought in this part of the United States has created conditions which have resulted in the lowest Lake Mead water levels in history, since the reservoir was filled in the 1930s. Years of unrelenting drought and temperatures pushed higher by climate change are shrinking the lake dramatically.

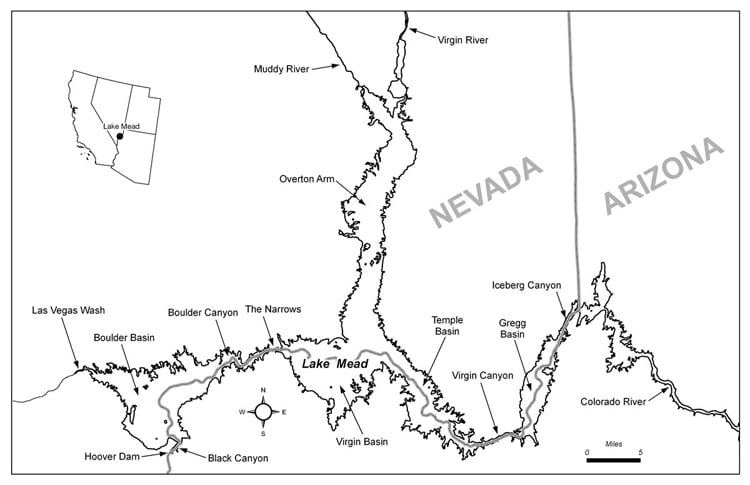

For more information on Lake Meade, click the map below and see the Overview of Lake Meade from the National Park Service.

Lake Mead overview (credit: NPS)
View larger image



Explore Lake Mead water levels using Landsat Explorer

ArcGIS Living Atlas of the World includes authoritative content and apps that helps you learn more about current topics and events such as drought conditions. Follow these steps to explore Lake Mead water levels over time using Living Atlas content and Landsat Explorer, one of the Living Atlas apps, all in a minute (or less).

Step 1 — Go to the ArcGIS Living Atlas website and click the Apps tab.

Living Atlas Apps tab
Open Living Atlas apps

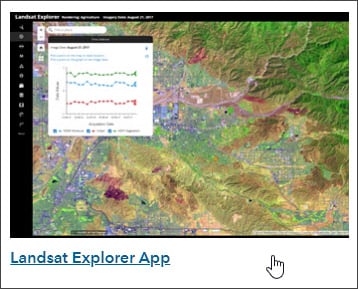

Step 2 — Browse the apps to find Landsat Explorer.

Landsat Explorer

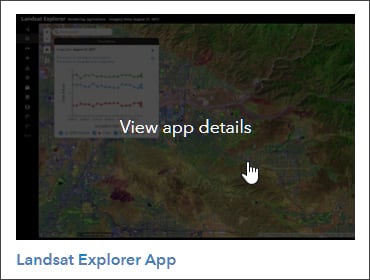

Step 3 — Click the thumbnail to View app details.

View app details

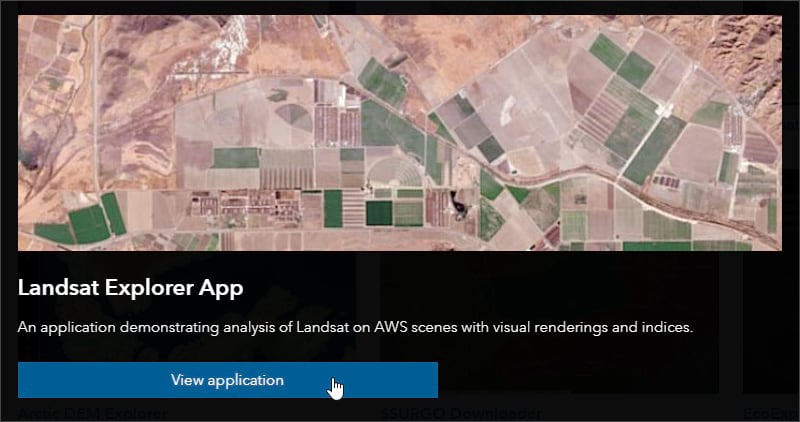

Step 4 — Click View application.

View Landsat Explorer app
Open Landsat Explorer

Tip: It’s not necessary to open Landsat Explorer from the Apps tab at the Living Atlas website each time you want to use it. You can bookmark the Landsat Explorer app directly, search for it on ArcGIS Online, or find it using search on the Living Atlas website Browse tab.

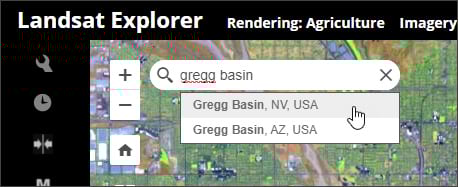

Step 5 — Once Landsat Explorer opens, search for “Gregg Basin, NV, USA.” The map will navigate to near the eastern portion of the lake.

Search

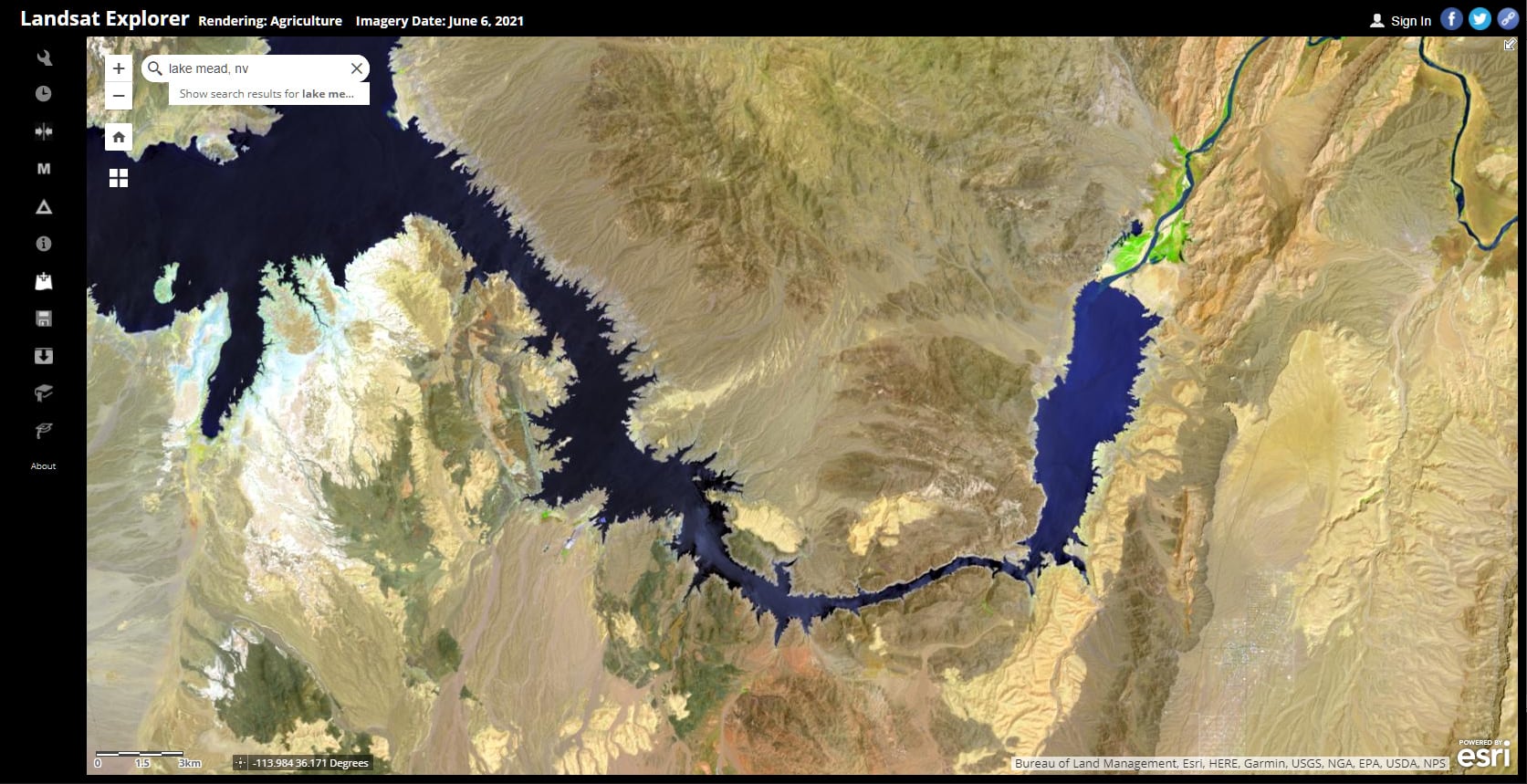

Step 6 — Zoom out and pan to position the map. Your map should look similar to what is shown below, though you can zoom to any other area if you like.

Gregg Basin area, Lake Mead
View larger image

Step 7 — Note the date shown at the top of the application, in this case June 6, 2021.

Imagery date

This is the date of the most recent Landsat imagery captured for the area, and it will change over time as new satellite imagery is acquired. In this example, you will go back in time approximately 20 years to compare the change in lake water level.

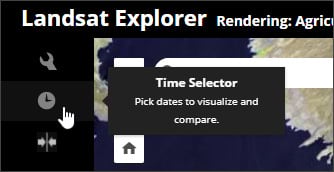

Step 8 — Click Time Selector. The button is the second one down on the left.

Time Selector

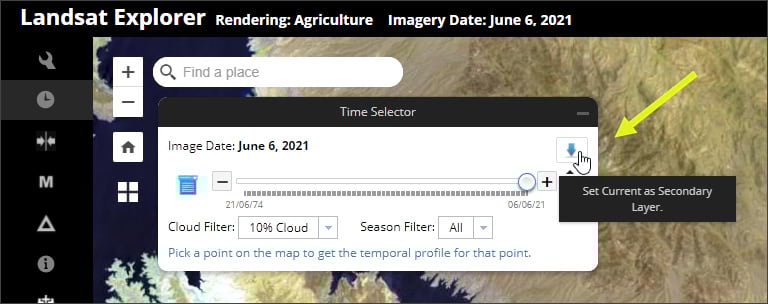

Step 9 — Using the Time Selector, click the down arrow (in the upper right of the selector) to set the current Landsat image date (in this case June 6, 2021) as the secondary layer.

Set secondary layer

The secondary layer will appear on the left side of our comparison swipe, which is configured in Step 10 below.

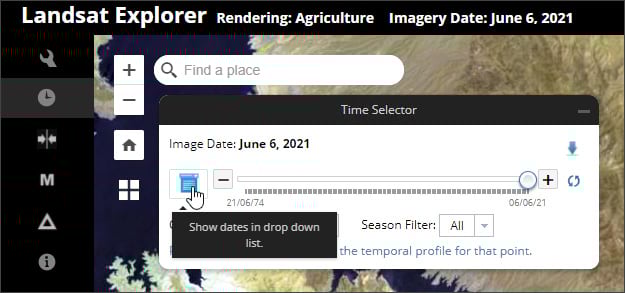

Step 10 — On the left side of the Time Selector, click the blue list icon to show dates in a drop-down list.

Toggle drop-down list

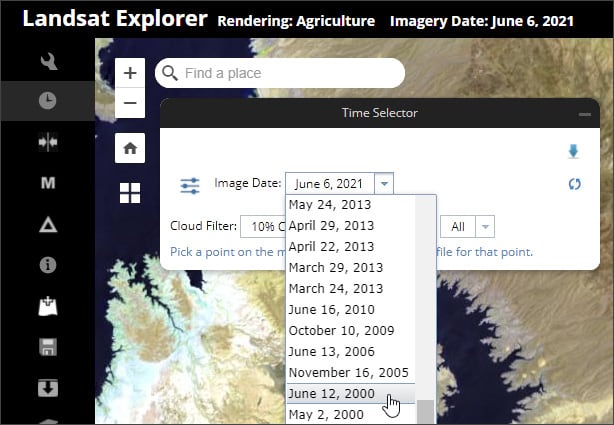

Step 11 — Choose an earlier date from the drop-down list of available dates. In this example, we’ll look for the same month (June) but approximately 20 years earlier.

Choose date

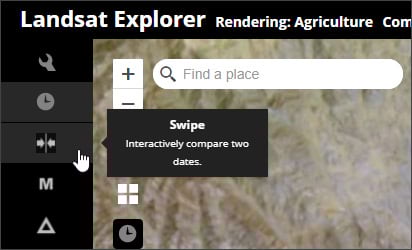

Step 12 — Click the swipe tool, which is right below the Time Selector.

Swipe

Look at the top of the app to verify the dates. The left side will be the most recent imagery (selected in Step 9), with the right side displaying the date chosen in Step 11.

Imagery dates

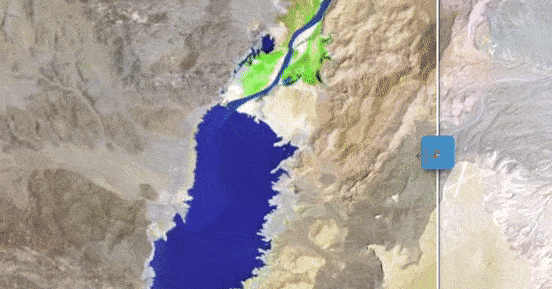

Step 13 — Grab the swipe handle and slide left and right to view the change in water level over time. You will notice that the water levels in Lake Mead have dropped significantly.

Swipe comparison

You can experiment using different dates to view change over different time spans.



Doing more with Landsat Explorer

Image rendering

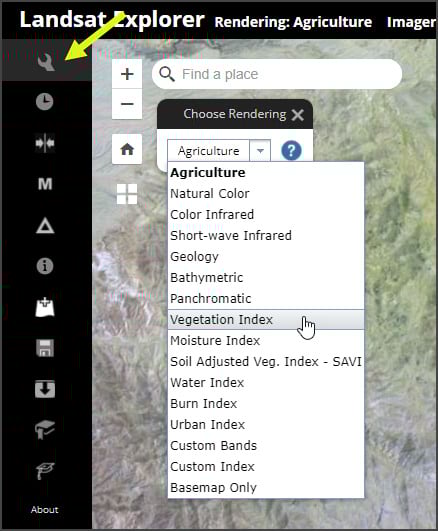

Rendering is configured by changing band combinations, which highlight or accentuate certain characteristics captured in the imagery. To change rendering, click the Renderer tool in the top left, then choose the renderer you want from the drop-down list.

Choose rendering

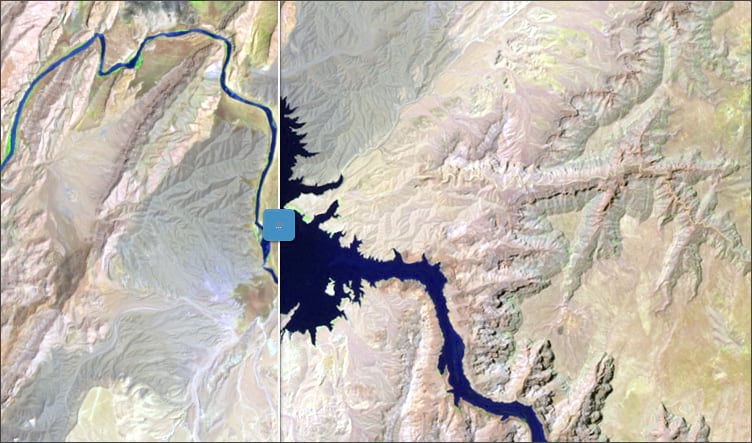

Landsat Explorer uses Agriculture as the default renderer, which shows vigorous vegetation as bright green and sparsely vegetated areas brown and mauve.

Agriculture renderer
Agriculture: June 6, 2021 on left, June 12, 2000 on right

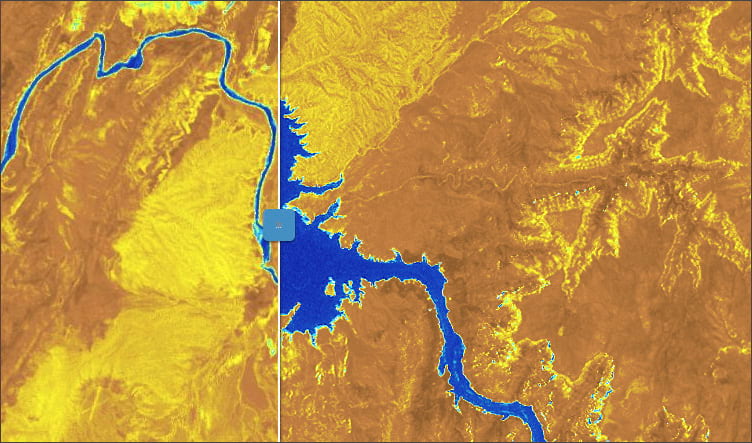

This next comparison shows Moisture Index, with high levels of moisture appearing blue and arid areas apearing as tan to brown.

Moisture Index
Moisture Index: June 6, 2021 on left, June 12, 2000 on right

You can also choose different renderers for imagery on either side of the swipe tool to compare different characteristics as well as dates.

Note: In order to view imagery using different renderers on the left and right, choose the imagery date and renderer for the left side prior to setting it as the secondary layer (Step 9 above). The secondary layer appears on the left when you use the Swipe tool. Next, choose a different date and renderer for the current layer, which appears on the right when you use the Swipe tool.

In this example, Natural Color is on the left and Moisture Index is on the right.

Natural Color v. Moisture Index
Natural Color: June 6, 2021 on left, Moisture Index: June 12, 2000 on right

Analysis in ArcGIS Pro

You can add Landsat imagery from Living Atlas in ArcGIS Pro to perform additional visualization and analysis by following these steps.

Step 1 — Open a map in ArcGIS Pro and click Add Data, then Add data to the map.

ArcGIS Pro Add Data

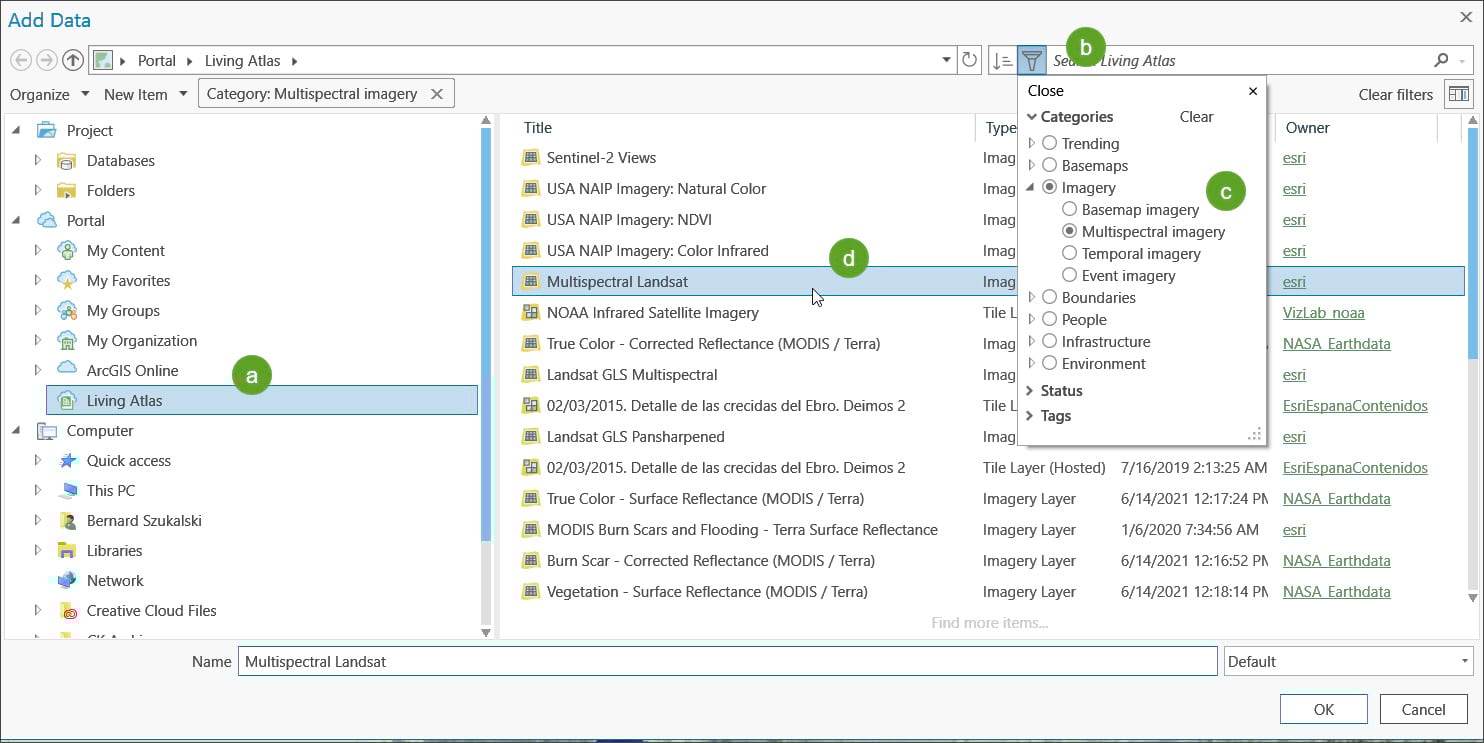

Step 2 — Add Landsat imagery from Living Atlas.

a — In your portal, choose Living Atlas.

b — Click filter.

c — Open Categories, then choose Imagery, then Multispectral imagery.

d — There are several Landsat layers to choose from, select the one you want to add to the map.

Add from Living Atlas
View larger image

For more information, see the Landsat lesson gallery at Learn ArcGIS.
